あらかじめapr,apr-utilをそれぞれこの順番でmakeしておきます。
以下のようなスクリプトを実行します。
setup.sh
#!/bin/sh if [ $# -eq 1 ]; then . ../setup-pre.sh $1 else . ../setup-pre.sh fi case "$ISA" in "sparcv9"|"amd64") libexecpath=/usr/local/libexec/apache/$ISA datapath=/usr/local/share/apache/$ISA ;; "sparcv8plus"|"i386") libexecpath=/usr/local/libexec/apache datapath=/usr/local/share/apache ;; *) libexecpath=/usr/local/libexec/apache datapath=/usr/local/share/apache ;; esac ./configure \ --prefix=/usr/local \ --bindir=/usr/local/bin/$ISA \ --sbindir=/usr/local/sbin/$ISA \ --libdir=/usr/local/lib$LIBISA \ --libexecdir=$libexecpath \ --datadir=$datapath \ --sysconfdir=/etc/apache24 \ --localstatedir=/var \ --mandir=/usr/local/share/man \ --enable-layout=GNU \ --enable-threads
% ./setup.sh [ sparcv8plus | sparcv9 | i386 | amd64 ] && gmake # gmake install
OSのexpatライブラリを使います。
以下のようなスクリプトを実行します。
setup.sh
#!/bin/sh if [ $# -eq 1 ]; then . ../setup-pre.sh $1 else . ../setup-pre.sh fi case "$ISA" in "sparcv9"|"amd64") libexecpath=/usr/local/libexec/apache/$ISA datapath=/usr/local/share/apache/$ISA ;; "sparcv8plus"|"i386") libexecpath=/usr/local/libexec/apache datapath=/usr/local/share/apache ;; *) libexecpath=/usr/local/libexec/apache datapath=/usr/local/share/apache ;; esac case `uname -r` in "5.8"|"5.9"|"5.10") ldap="ldap" expatlib="/usr/sfw" ;; "5.11") ldap="ldap-2.4" expatlib="/usr" ;; esac ./configure $CONFDIRS \ --libexecdir=$libexecpath \ --datadir=$datapath \ --sysconfdir=/etc/apache24 \ --localstatedir=/var \ --mandir=/usr/local/share/man \ --enable-layout=GNU \ --with-apr=/usr/local/bin/$ISA/apr-1-config \ --with-ldap=$ldap \ --with-ldap-include=$ldapinc \ --with-ldap-lib=$ldaplib \ --with-dbm=db$bdbver \ --with-berkeley-db=$bdbpath \ --with-expat=$expatlib \ --with-iconv=$iconvpath
% ./setup.sh [ sparcv8plus | sparcv9 | i386 | amd64 ] % gmake # gmake install
以下のようなスクリプトを実行します。
setup.sh
#!/bin/sh if [ $# -eq 1 ]; then . ../setup-pre.sh $1 else . ../setup-pre.sh fi case "$ISA" in "sparcv9"|"amd64") libexecpath=/usr/local/libexec/apache/$ISA datapath=/var/apache24/$ISA ;; "sparcv8plus"|"i386") libexecpath=/usr/local/libexec/apache datapath=/var/apache24 ;; *) libexecpath=/usr/local/libexec/apache datapath=/var/apache24 ;; esac CFLAGS="-DSSL_EXPERIMENTAL -DSSL_ENGINE $CFLAGS"; export CFLAGS ./configure $CONFDIRS \ --libexecdir=$libexecpath \ --datadir=$datapath \ --sysconfdir=/etc/apache24 \ --localstatedir=/var \ --libdir=/usr/local/lib$LIBISA \ --mandir=/usr/local/share/man \ --enable-layout=GNU \ --enable-modules=all \ --enable-mods-shared=all \ --enable-authn-alias \ --enable-file-cache \ --enable-cache \ --enable-disk-cache \ --enable-mem-cache \ --enable-charset-lite \ --enable-authnz-ldap \ --enable-ldap \ --with-ldap \ --with-mpm=prefork \ --enable-proxy \ --enable-proxy-connect \ --enable-proxy-ftp \ --enable-proxy-http \ --enable-proxy-ajp \ --enable-proxy-balancer \ --enable-so \ --enable-suexec \ --enable-rule=SSL_EXPERIMENTAL \ --enable-deflate \ --enable-ssl \ --with-ssl=$sslpath \ --with-z=/usr \ --with-suexec-caller=webservd \ --with-apr=/usr/local/bin/$ISA/apr-1-config \ --with-apr-util=/usr/local/bin/$ISA/apu-1-config
% ./setup.sh [ sparcv8plus | sparcv9 | i386 | amd64 ] % gmake # gmake install
ISA自動起動リンクを作るために、以下のスクリプトを実行します。
#!/bin/sh # SBINPROG="suexec httpd httxt2dbm htcacheclean htdbm checkgid ab logresolve rotatelogs htdigest htpasswd env vars-std dbmmanage apachectl apxs" BINPROG="" if [ "${SBINPROG}" != "" ]; then cd /usr/local/sbin for prog in ${SBINPROG} do rm -f $prog ln /usr/lib/isaexec $prog echo $prog done fi if [ "${BINPROG}" != "" ]; then cd /usr/local/bin for prog in ${BINPROG} do rm -f $prog ln /usr/lib/isaexec $prog echo $prog done fi
Ultra SPARC T1/2 内蔵の暗号高速化エンジンを利用できるようにSolaris Crypto Frameworkを使います。なお、他のプロセッサでもSolaris Crypto Frameworkを使えば若干の高速化が望めるらしいので、これを有効にします。
httpd-ssl.conf
SSLCryptoDevice pkcs11

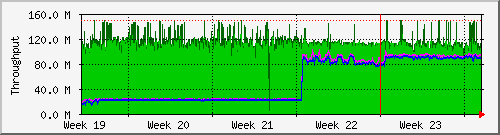

これを有効にすることで、このグラフのように性能向上しました。
青いグラフの前半が「有効前」、後半が「有効後」です。
MPMのpreforkを有効にしたら以下の設定をします。
<IfModule mpm_prefork_module> ServerLimit 8192 MaxClients 2048 ListenBacklog 8192 ServerLimit 2048 MaxClients 2048 MinSpareServers 20 MaxSpareServers 20 MaxRequestsPerChild 0 StartServers 20 </IfModule>
manifest: http-apache22.xml
<?xml version="1.0"?> <!DOCTYPE service_bundle SYSTEM "/usr/share/lib/xml/dtd/service_bundle.dtd.1"> <!-- Copyright 2006 Sun Microsystems, Inc. All rights reserved. Use is subject to license terms. ident "@(#)http-apache22.xml" --> <service_bundle type='manifest' name='apache22'> <service name='network/http' type='service' version='1'> <!-- Because we may have multiple instances of network/http provided by different implementations, we keep dependencies and methods within the instance. --> <instance name='apache22' enabled='false'> <!-- Wait for network interfaces to be initialized. --> <dependency name='network' grouping='require_all' restart_on='error' type='service'> <service_fmri value='svc:/milestone/network:default'/> </dependency> <!-- Wait for all local filesystems to be mounted. --> <dependency name='filesystem-local' grouping='require_all' restart_on='none' type='service'> <service_fmri value='svc:/system/filesystem/local:default'/> </dependency> <!-- Wait for automounting to be available, as we may be serving data from home directories or other remote filesystems. --> <dependency name='autofs' grouping='optional_all' restart_on='error' type='service'> <service_fmri value='svc:/system/filesystem/autofs:default'/> </dependency> <exec_method type='method' name='start' exec='/lib/svc/method/http-apache22 start' timeout_seconds='60' /> <exec_method type='method' name='stop' exec='/lib/svc/method/http-apache22 stop' timeout_seconds='60' /> <exec_method type='method' name='refresh' exec='/lib/svc/method/http-apache22 refresh' timeout_seconds='60' /> <property_group name='httpd' type='application'> <stability value='Evolving' /> <propval name='ssl' type='boolean' value='false' /> </property_group> <property_group name='startd' type='framework'> <!-- sub-process core dumps shouldn't restart session --> <propval name='ignore_error' type='astring' value='core,signal' /> </property_group> </instance> <stability value='Evolving' /> <template> <common_name> <loctext xml:lang='C'> Apache 2.2 HTTP server </loctext> </common_name> <documentation> <manpage title='httpd' section='8' manpath='/usr/local/man' /> <doc_link name='apache.org' uri='http://httpd.apache.org' /> </documentation> </template> </service> </service_bundle>
method: http-apache22
#!/sbin/sh # # Copyright 2004 Sun Microsystems, Inc. All rights reserved. # Use is subject to license terms. # # ident "@(#)http-apache22" # . /lib/svc/share/smf_include.sh APACHE_HOME=/usr/local CONF_FILE=/etc/apache22/httpd.conf PIDFILE=/var/run/apache22/httpd.pid [ ! -f ${CONF_FILE} ] && exit $SMF_EXIT_ERR_CONFIG case "$1" in start) /bin/rm -f ${PIDFILE} /bin/mkdir -p /var/run/apache22 cmd="start" ;; refresh) cmd="graceful" ;; stop) cmd="stop" ;; *) echo "Usage: $0 {start|stop|refresh}" exit 1 ;; esac exec ${APACHE_HOME}/sbin/apachectl $cmd 2>&1
manifestとmethodを登録します。
# cp http-apache22 /lib/svc/method/ # chown root:bin /lib/svc/method/http-apache22 # chmod 555 /lib/svc/method/http-apache22 # cp http-apache22.xml /var/svc/manifest/network/ # chown root:sys /var/svc/manifest/network/http-apache22.xml # chmod 444 /var/svc/manifest/network/http-apache22.xml # /usr/sbin/svccfg validate /var/svc/manifest/network/http-apache22.xml # /usr/sbin/svccfg -v import /var/svc/manifest/network/http-apache22.xml
設定ファイルを用意します。
# vi /etc/apache22/httpd.conf
サービスを有効化します。
# svcadm enable network/http:apache22
